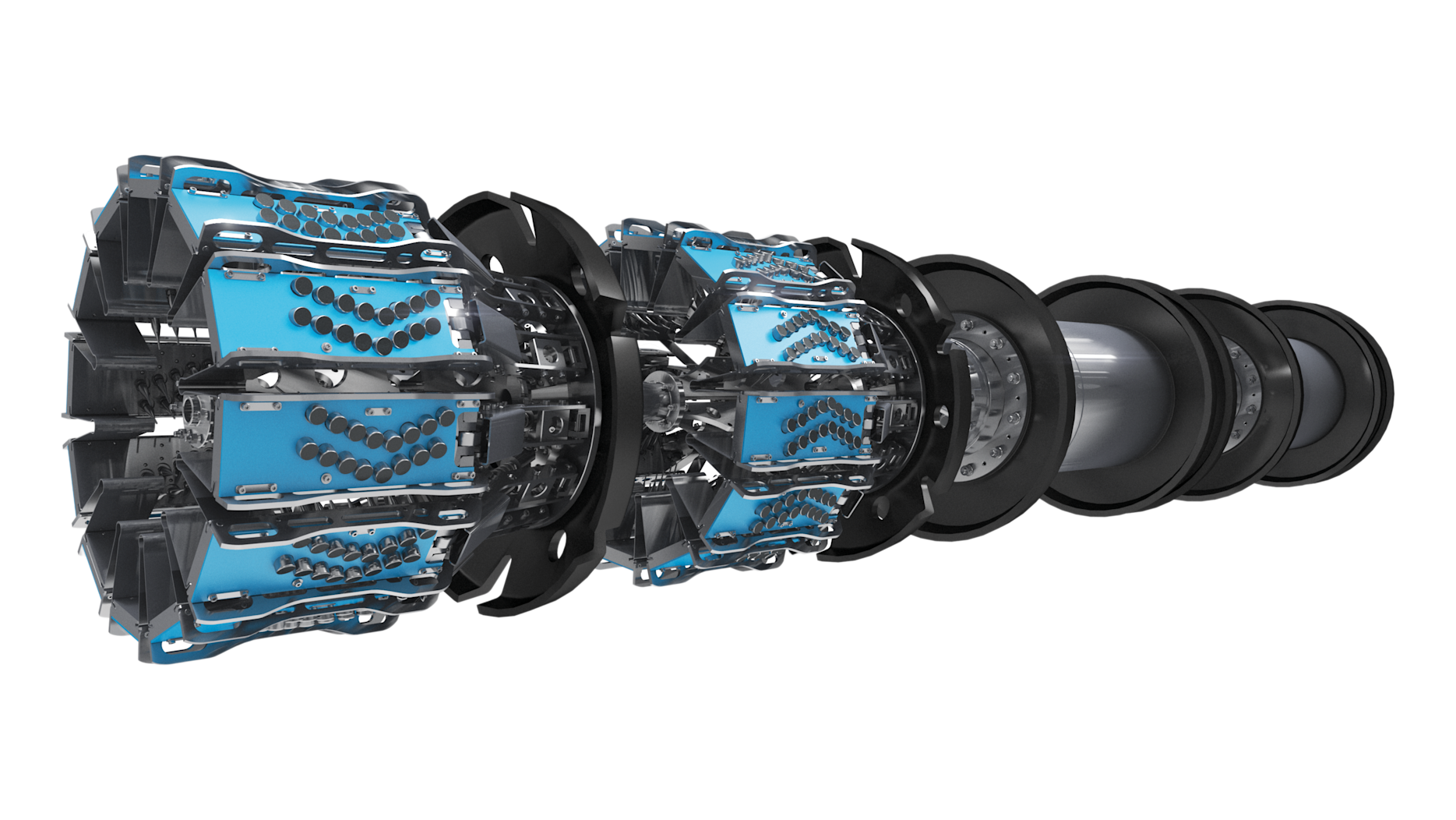

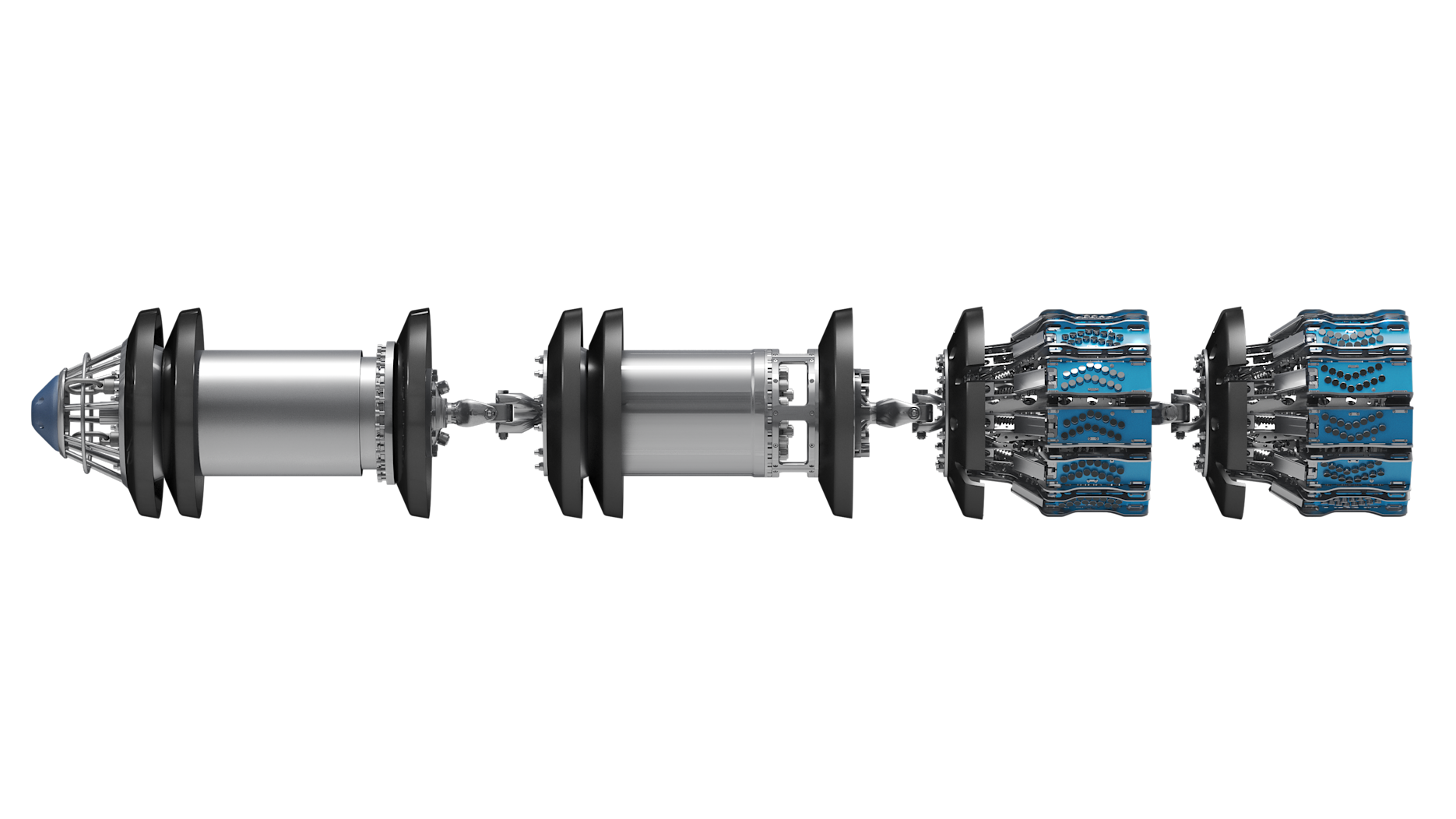

EVO Platform

The EVO series ultrasonic inspectionThe systematic process of visually examining, testing, or monitoring pipeline components to assess their condition, integrity, and compliance with regulatory re… tools is NDT Global’s premiere solution for liquid pipelines.

These systems can be used to detectTo sense or obtain a measurable indication from a feature. a range of defects along with their sizing, orientation, characterization, and predicted failureThe inability of a pipeline system to fulfill its intended function or meet the required performance criteria. Pipeline failures can have significant consequenc… pressures. In the hands of our analysis team, this information is translated into a complete picture of the asset’s current health, along with the most accurate predictions about its future health based on existing operating conditions.

There are a number of operational advantages that come with our EVO series inspectionThe systematic process of visually examining, testing, or monitoring pipeline components to assess their condition, integrity, and compliance with regulatory re… tools. Chief among these advantages is the reduced/minimized riskA measure of loss in terms of both the incident likelihood of occurrence and the magnitude of the consequences. to asset health and efficiency as the inspection occurs. Our EVO series was designed to quickly traverse the most challenging pipelines with minimal risk of failureThe inability of a pipeline system to fulfill its intended function or meet the required performance criteria. Pipeline failures can have significant consequenc…, all while collecting the data that operators can confidently use to make the best decisions about their asset. This speed is complemented by its range of diameters, with tools ranging from 6” to 48”. Rounding out EVO’s operational efficiency is the number of technologies that can be deployed in a single inspection. Instead of having to run multiple inspections to collect data on individual featureGeneral term for an anomaly detected during an assessment. Features can be anomalies, components, nearby metallic objects, welds, appurtenances, or some other i… types, EVO can collect all feature data – cracks, cracks in dents, dents and ovalities, metal lossRefers to the reduction in material thickness or cross-sectional area of a pipe due to corrosion, erosion, or other forms of degradation. , etc. – in a single run, reducing the time needed to perform these inspections, increasing pipeline efficiently.

NDT Global’s EVO series is unique in the ultrasonic inspectionThe systematic process of visually examining, testing, or monitoring pipeline components to assess their condition, integrity, and compliance with regulatory re… industry because of its unmatched precision of accuracy. The current generation of EVO tools has an axial resolution up to 0.75 mm (0.03 in.), meaning it can set out axial grid locations every 0.75 mm (0.03 in.) as it travels through the pipe. The tightness of the axial portion of the grid enables the highest resolution data possible in the asset. The result is the most complete snapshot of a liquid pipeline’s health, accompanied by the insights needed to plan mitigationAppropriate action based on an assessment of risk factors to reduce the overall level of pipeline integrity risk by reducing the amount of risk from a probabili… efforts only when they’re needed and not before.

If you’re a liquid pipeline operatorAn entity or organization responsible for the operation, management, and maintenance of a pipeline system. The operator is entrusted with ensuring the safe, rel… seeking to maximize the safety and return on your asset investment, contact us to see how NDT Global can be your must trusted integrityThe capability of a pipeline to perform its intended function safely and reliably throughout its life. It includes a range of factors, including the structural … management partner.
